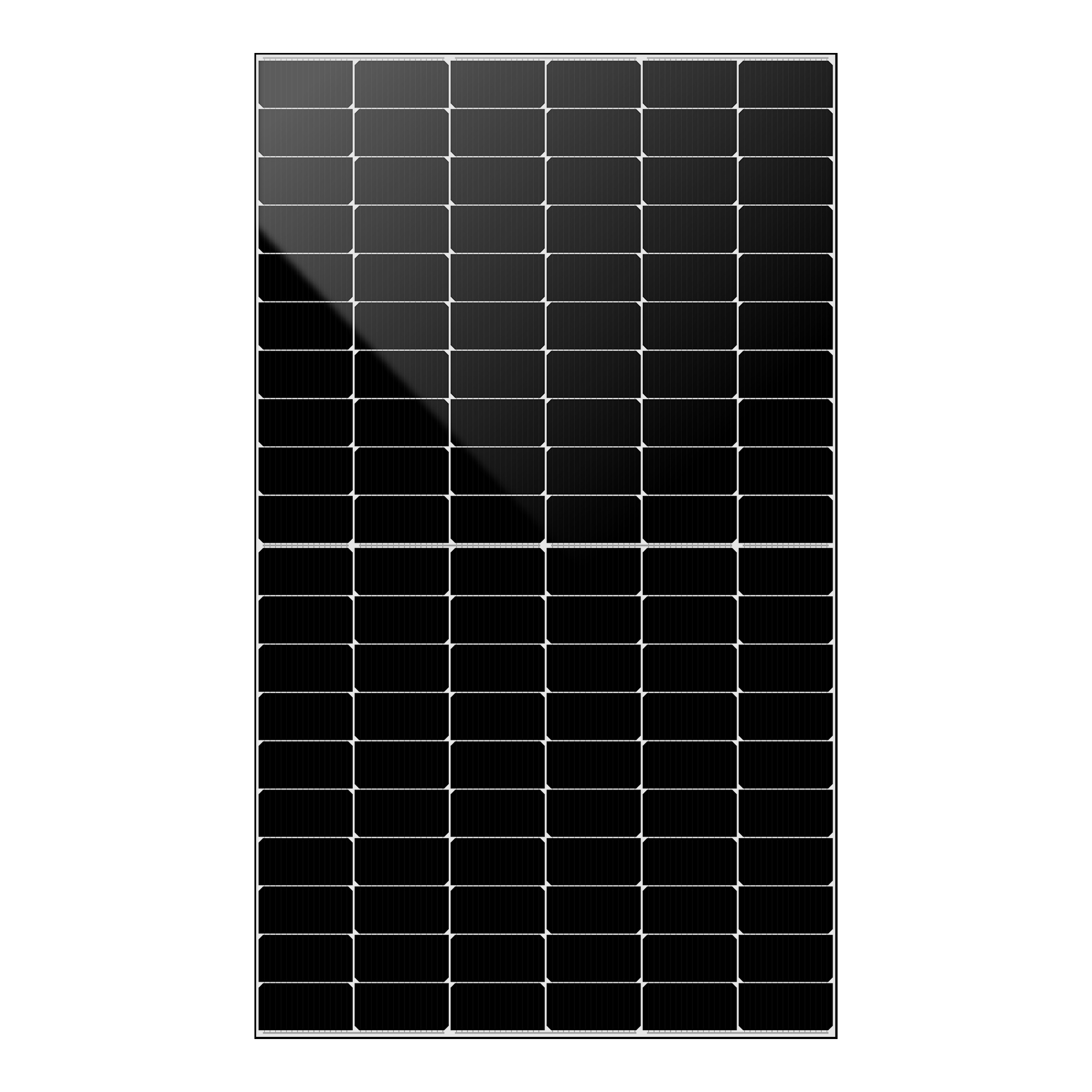

DAH Solar 475W Full-Screen N-Type Module (DHN-60X16/FS(BW))

Now at Austra are DAH Solar’s 475W modules, with N-Type TOPCon cell technology and patented Full-Screen design.

DAH Solar’s Full-Screen modules offer a frameless panel front, featuring a smooth surface crafted to prevent harmful dust and water build-up caused by frame edges that can lead to reductions in module power generation and cause damaging hotspots.

The cutting-edge innovations from DAH Solar are combined with leading N-Type TOPCon technology, lowering degradation rates and improving efficiency. The Full Screen design then offers up to a 15% increase in power generation over standard frame modules of the same specifications, providing top of its class performance.

Full-Screen Benefits

• Patented Full-Screen design with proven power generation increases of up to 15%

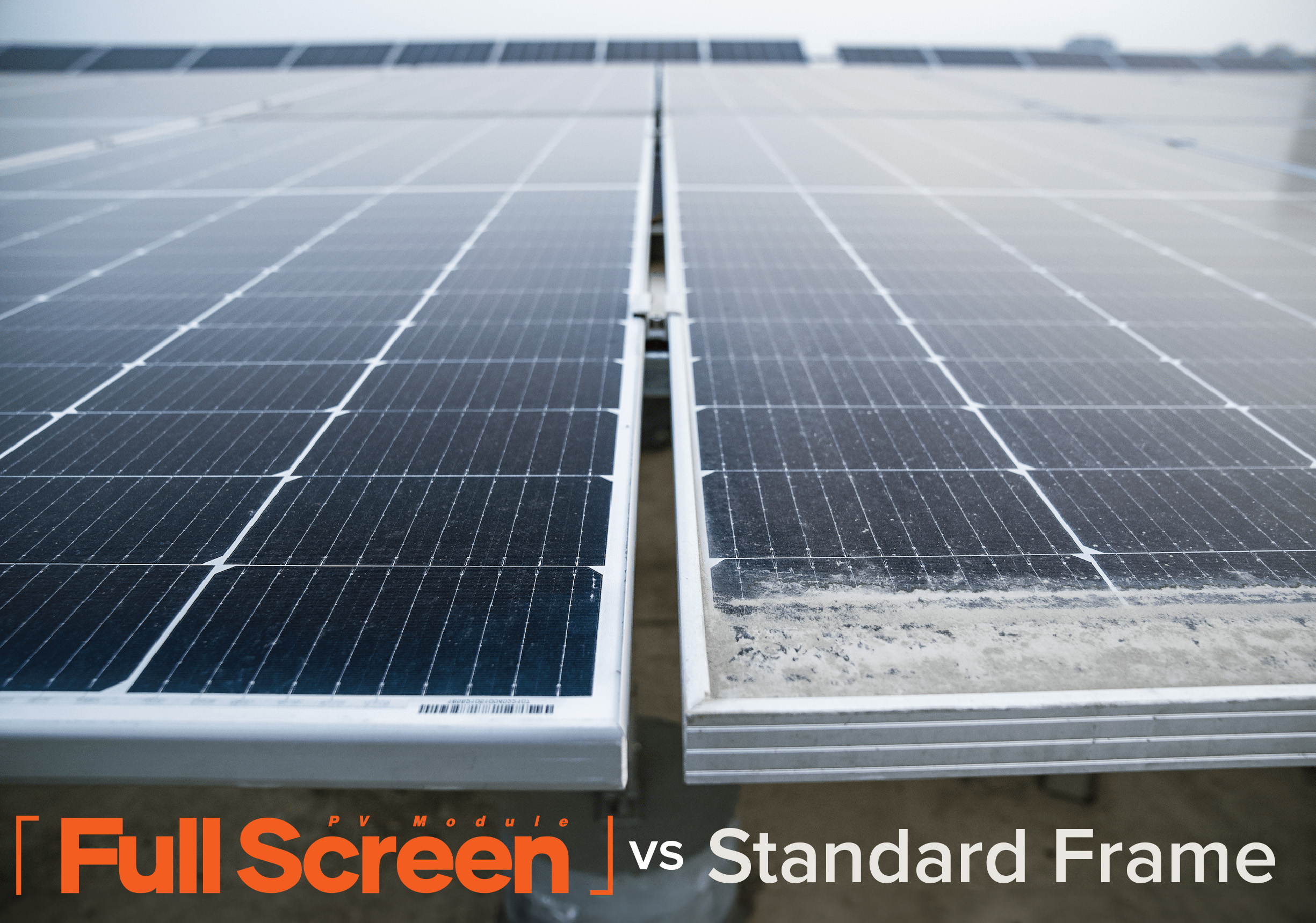

• Eliminates dust and water residue with smooth frameless front

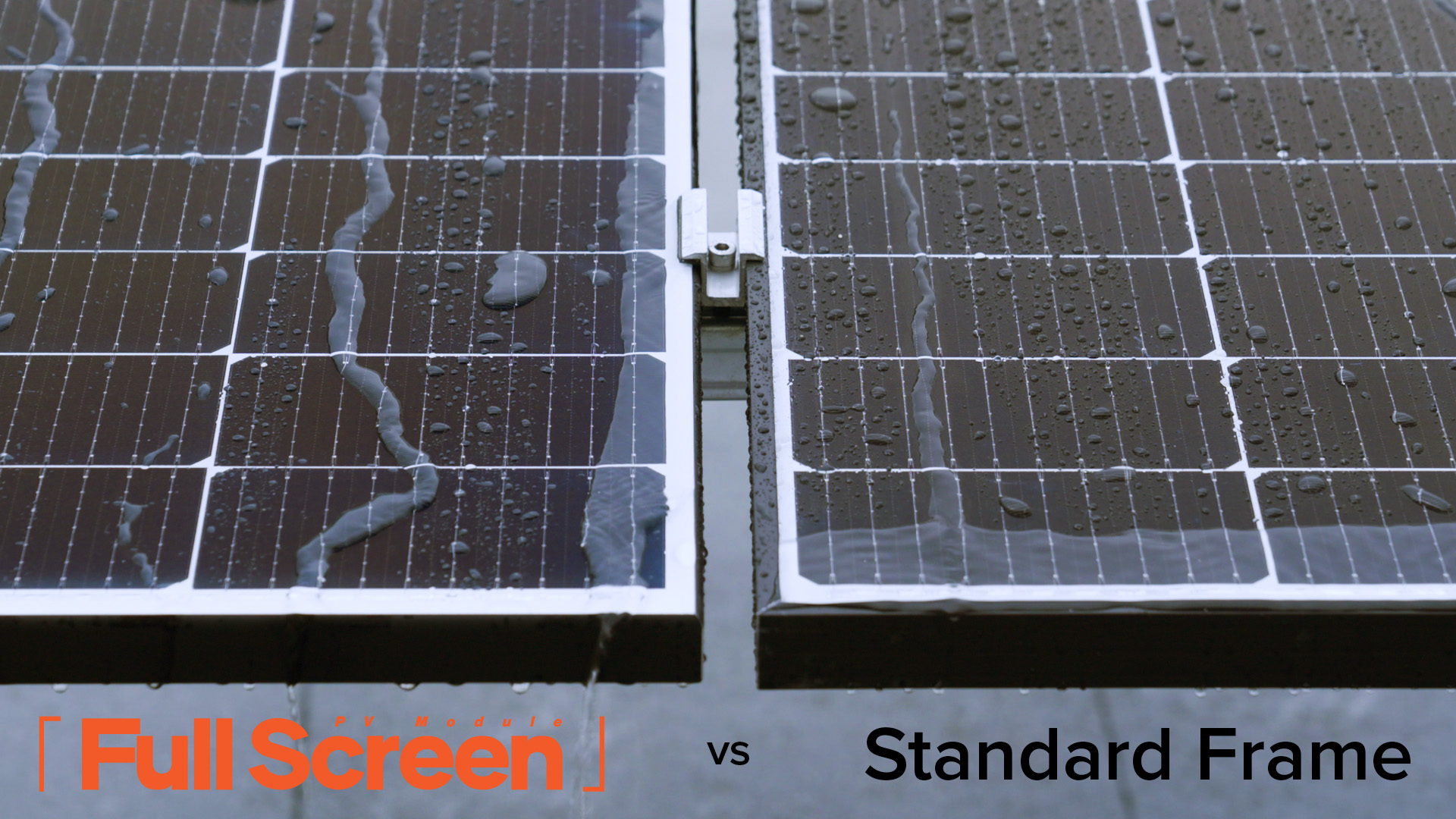

• Rain allows the panel to self-clean, reducing hot-spot risk

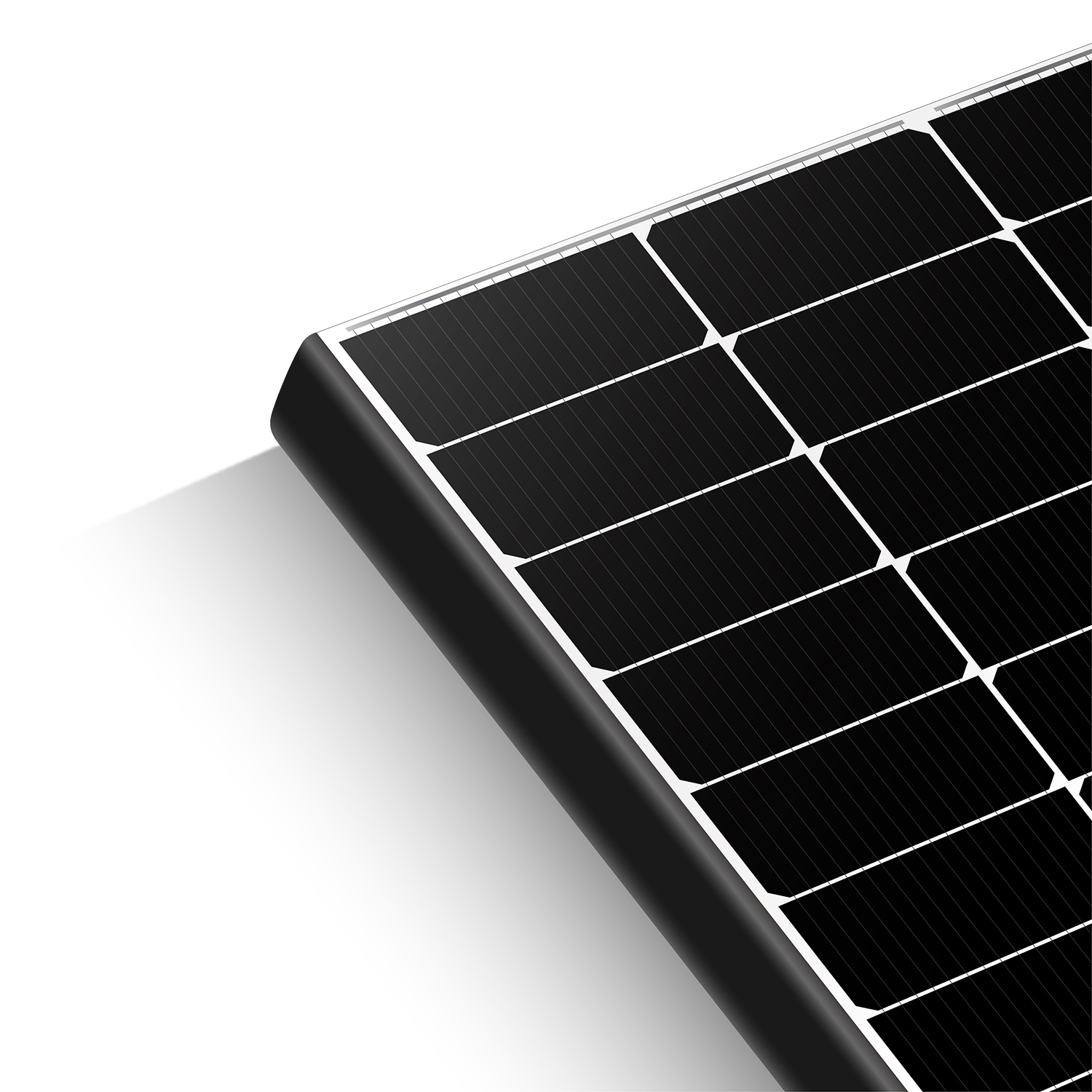

• Easier installation and handling due to innovative curved outer frame design

Panel Features

• 475W Full-Screen N-Type TOPCon module with black outer frame
• Full-Screen technology stops water and dust buildup, reducing power loss and maintenance costs
• Higher Power Generation Efficiency – Full-Screen design is combined with leading N-type TOPCon technology, boosting module power generation further
• Low degradation rate – First-year degradation ≤1%, 2-30 year ≤0.4%;
• PID resistant – N-Type TOPCon cells offer excellent Anti-PID performance
• -0.30%/°C temperature coefficient – Greater power generation at high temperatures
• Dimensions (H×WxD): 1903 × 1134 × 32mm
• Weight: 23.8kg
• 25 Year Product Warranty & 30 Year Linear Power Warranty

For a more compact option with the same great features, we also offer DAH Solar’s 440W Full-Screen N-Type module.
